VPR-22U
VPR-22U Voltage Protection Relay
3-phase DIN-rail voltage protection relay (no external supply)
3Ø 3-wire, 280–520 V AC
View & quote
Multispan · Protection Relays
Multispan Protection Relays
DIN-rail and panel voltage, phase and overload protection relays — under/over voltage, phase failure, asymmetry and sequence protection.
SPP-22 / V22-RYB
SPP-22 / V22-RYB Single Phase Preventor
3-phase single-phasing preventor with R-Y-B indication
Single-phasing prevention
View & quote
SVR-22U
SVR-22U Single Phase Voltage Relay
Single-phase under/over voltage relay, universal supply
Single-phase 160–300 V AC
View & quote
VMR-132
VMR-132 Voltage Protection Relay
96x96 panel-mount 3-phase protection relay with display
96 x 96 mm panel display
View & quote

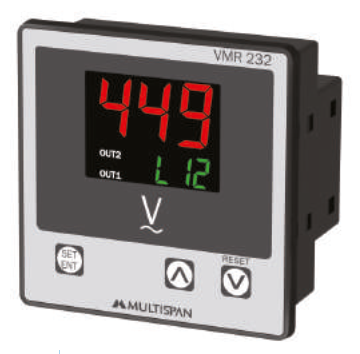

VMR-232
VMR-232 Voltage Protection Relay
72x72 panel-mount 3-phase protection relay with display
72 x 72 mm panel display
View & quote

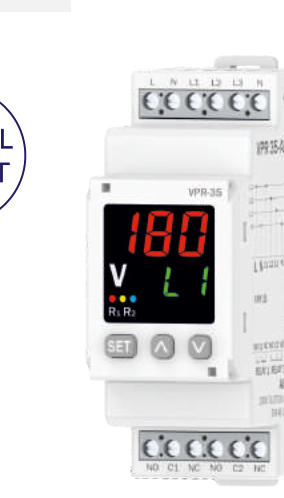

VPR-35
VPR-35 Voltage Protection Relay
DIN-rail 3Ø4W/3Ø3W/1Ø2W protection relay with display
3Ø4W / 3Ø3W / 1Ø2W selectable
View & quote

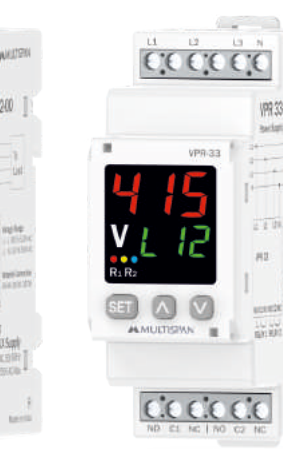

VPR-33
VPR-33 Voltage Protection Relay
DIN-rail 3Ø4W/3Ø3W protection relay, self-powered
3Ø4W / 3Ø3W
View & quote

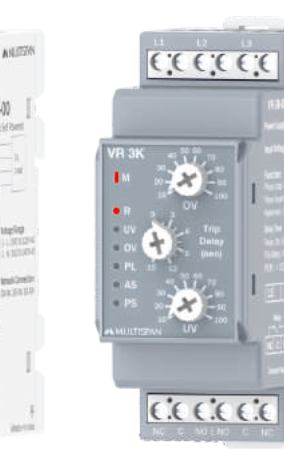

VR-3K
VR-3K Voltage Protection Relay
DIN-rail 3Ø3W voltage protection relay
3Ø 3-wire, 280–520 V AC
View & quote

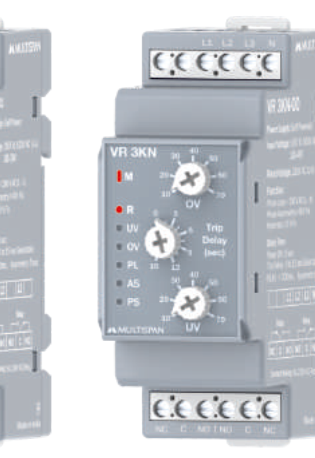

VR-3KN
VR-3KN Voltage Protection Relay
DIN-rail 3Ø4W voltage protection relay with neutral loss
3Ø 4-wire, 160–300 V AC (L-N)
View & quote

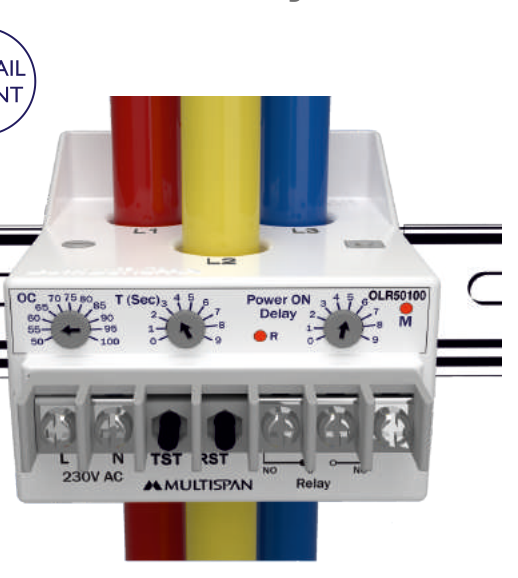

OLR 50100
OLR 50100 Overload Relay (Built-in CT)
DIN-rail overload relay with built-in current transformers
Built-in CTs, 50–100 A
View & quote
Compare
Compare Multispan Protection Relays models
| Model | Ordering code | Dimension (HxWxD) | Relay Output | Mounting | Voltage |
|---|---|---|---|---|---|
| VPR-22U | VPR-22U | 90 x 22.5 x 72 mm | 1 Relay, 5A, 230V AC (resistive load) | DIN Rail | — |
| SPP-22 / V22-RYB | SPP-22 / V22-RYB | 90 x 22.5 x 66.5 mm / 90 x 22.5 x 70.5 mm | 1 Relay, 5A, 230V AC (resistive load) | DIN Rail | — |
| SVR-22U | SVR-22U | 90 x 22.5 x 72 mm | 1 Relay 1C/O, 5A, 230V AC (resistive load) | DIN Rail | 160 to 300V AC (L-N), 1Ø-2W |
| VMR-132 | VMR-132 | 96 x 96 x 43 mm | 1st relay 5 A, 230V AC · 2nd relay (optional) | — | 50 to 520V AC (L-L), 30 to 300V AC (L-N) |
| VMR-232 | VMR-232 | 72 x 72 x 45 mm | 1st relay 10 A, 230V AC | — | 50 to 520V AC (L-L), 30 to 300V AC (L-N) |
| VPR-35 | VPR-35 | 90 x 35 x 61.5 mm | 2 Relay (NO-C-NC), 230V AC (resistive load) | DIN Rail | 30 to 300V AC (L-N), 50 to 520V AC (L-L) |
| VPR-33 | VPR-33 | 90 x 35 x 61.5 mm | 2 Relay (NO-C-NC), 230V AC (resistive load) | DIN Rail | 160 to 300V AC (L-N), 280 to 520V AC (L-L) |
| VR-3K | VR-3K | 90 x 35 x 62.5 mm | 1 Relay 2C/O, 5A, 230V AC (resistive load) | DIN Rail | 280 to 520V AC (L-L) |
| VR-3KN | VR-3KN | 90 x 35 x 62.5 mm | 1 Relay 2C/O, 5A, 230V AC (resistive load) | DIN Rail | 160 to 300V AC (L-N) |
| OLR 50100 | OLR 50100 | 70 x 70.5 x 91 mm | 1 Relay 1C/O, 5A, 230V AC (resistive load) | DIN Rail | — |
FAQ
Multispan Protection Relays
What protection relays does Multispan offer in the UAE?
Al Misbah Al Sehri distributes the full Multispan protection relays range in Dubai and across the GCC, including models such as VPR-22U, SPP-22 / V22-RYB, SVR-22U, VMR-132, VMR-232. All are genuine, CE-certified and in stock.
How do I choose the right Multispan protection relays?
Tell us your application — load rating, sensor or supply voltage, and mounting — and our engineers will recommend the correct Multispan model and a drop-in replacement if you're upgrading.
Can I get protection relays delivered outside Dubai?
Yes. We deliver across all seven emirates and export to Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.
